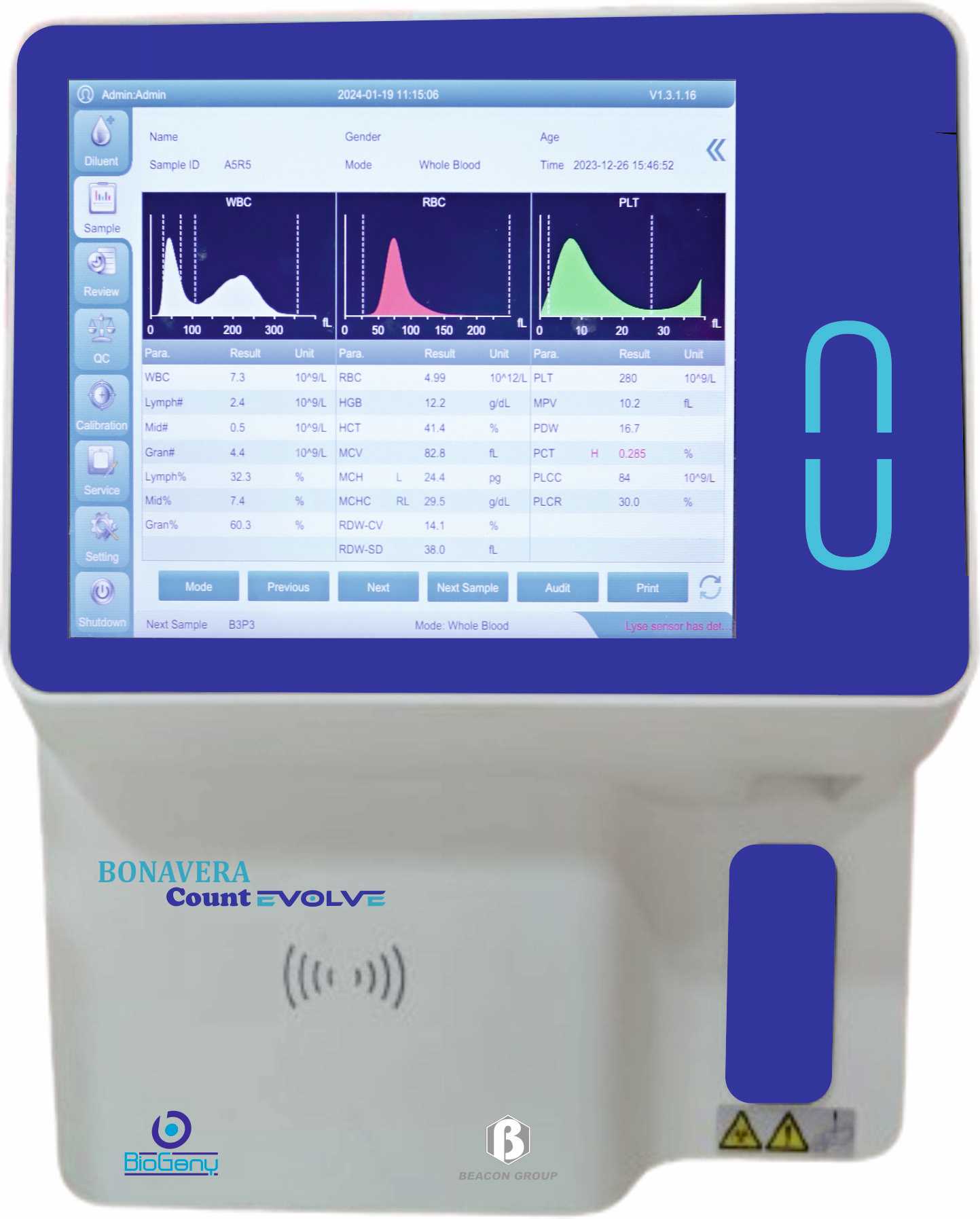

BONAVERA COUNT EVOLVE
Bonvera Count Evolve is an advanced 3-Part Hematology Analyzer offering 22 parameters with RDW-SD, RDW-CV, P-LCC, P-LCR, It provides RBC/WBC/PLT histograms. It delivers up to 72 tests per hour using a double chamber design, employs impedance and cyanide-free photoelectric colorimetry methods, and requires only 8.5 µL sample volume. The system features onboard storage for 1,000,000 results, optional RFID reagent close system, four QC modes, USB backup, built-in thermal printer, and full LIS/HIS connectivity via HL7 protocol.
22 parameters with P-LCC, P-LCR and RBC, WBC, PLT histograms
Throughput up to 72 tests per hour with double chamber design
Impedance method for WBC, RBC and PLT
Photoelectric colorimetry method for HGB with cyanide free reagent
Micro sample volume at 8.5 µL for whole blood mode and 20 µL for pre-dilute mode
On board storage capacity of 1,000,000 samples results
RFID reagent close system optional
Four kinds of QC modes: L-J, X, X-R and X-B
Support USB data backup & system upgrade
Built-in thermal printer
LIS and HIS available with HL7 protocol
Principles
WBC/RBC/PLT: electrical impedance
HGB: photoelectric colorimetry
Parameters
WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%,
RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD,
PLT, MPV, PDW-SD, PDW-CV, PCT, P-LCR, P-LCC
3-part differentiation of WBC, 22 parameters and 3 histograms
Aspiration volume
Whole blood 8.5 µL, pre-diluted 20 µL
Aperture diameter
WBC 100 µm, RBC/PLT 68 µm
Throughput
72 T/H
Data storage
Up to 1,000,000 sample results with histograms
Display
10.4-inch color LCD, resolution 800 x 600, touch screen
Control and calibration
L-J, X, X-R, X-B four control modes, manual and auto-calibration
Input/output
Support RS232, 6 USB (mouse, keyboard, HP printer, barcode reader and flash disk),
Internal 57mm thermal printer
Power Requirement
AC 100-240V, 50/60Hz, 180VA
Online UPS : 1 KVA, Online UPS with isolated transformer
