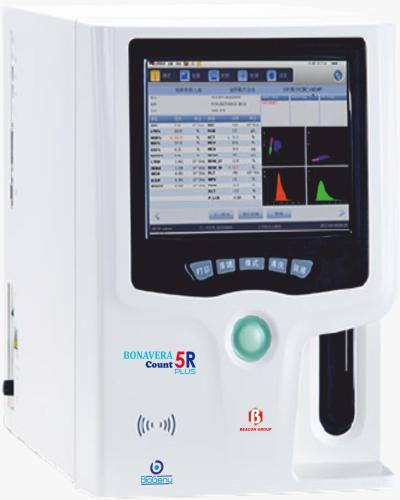

BONAVERA COUNT 5R PLUS
Overview
5 Part Differential Hematology Analyzer
5 Part Differential Hematology Analyzer
- 28 reportable parameters including Retic_Abs, Retic% & IRF
- Flow Cytometry & Multi Angle Scatter Separation (MASS) Technology
- Unique Sizing, Counting & resistance method for RBC / PLT counting
- Storage of 2,00,000 results with data & graphics
- Use of environment friendly sheath liquid for WBC differential
- Cyanide free colorimetry for Hgb
- Use of NMB dye technology for Retic enumeration
- 10.4" LCD Touch screen
- Close system with RFID detection
- Use of WIC & WOC dual method for WBC counting
- Requires just 20µl sample in WB & Prediluted Mode
- 4 QC Program options
- 9 User definable normal range
- 2D Laser scattering technology for effective enumeration of Retics
Hematology Analyzer also popularly known as CBC Analyzer is an automated biomedical instrument used in laboratories to count and analyse the solid components of blood, such as red blood cells, white blood cells, and platelets. It counts the no of cells and provides morphological information in the form of indices which are useful for screening, diagnosis, and monitoring of many disease conditions.
3 Part Hematology analyzer provides analysis of WBC in 3 Part, i.e. Lymphocyte, Mix Population and Granulocyte. Along with that it provides detailed information about RBC & Platelets. In case of 5 Part it enumerates all 5 Populations of WBC and provide detailed information for RBC & Platelets.
Bonavera Count 5R is 5 Part differential Hematology Analyser that provides enumeration of all 5 types of WBC along with information about RBC & Platelets. In addition, Bonavera Count 5R also provides enumeration for Reticulocyte.
Bonavera Count 5R Provide results for 28 CBC Parameters including Retic_Abs Count, Retic % and IRF%, with 2 Histograms for RBC & PLT and 2 scattergrams. Alongside it also provide screening result for 6 Parameters as Research Use Only (RUO) parameters.
Parameter Results under Reportable Parameter are the one which can be directly reported as results from the 5 PDA, whereas RUO parameters are the one which are just screening results that cannot be reported directly.
Bonavera Count 5R can provide results for 60 Sample in an Hour for CBC + 5 PDA mode and approximately 45 Sample in an hour in Retic Mode.
It has Large 10.4-inch LCD Touch Screen Display.
Bonavera Count 5R can store 2,00,000 Patient results along with Histograms and scattergrams.
It has built-in Touch Screen through which technician can operate the instrument.
Bonavera Count 5R is equipped with built-in thermal recorder for printing of results directly from instrument.
Bonavera Count 5R uses Multi Angle Scatter Separation (MASS) technology using Sheath Liquid and Flow Cytometry Technology that provides accuracy & Precision of counting each type of WBC. Moreover, it uses optical & Impedance counting (WIC/WOC) method that ensures precise counting of Basophil cells. For RBC & Platelet it uses unique Impedance counting principle. For Reticulocyte it uses NMB Dye and Double Angle scattering to count Retic Points, from which it generates report for Retic_Abs count, Retic % and IRF.
There are 4 main reagents used for routine counting in Bonavera Count 5R. Diluent, Lyse Detergent and Sheath Reagent. For Retic Mode separate Prefilled Retic Tubes are available. Additionally, as part of routine daily maintenance Probe cleaner is to be used every day while closing the instrument.
Use of sheath flow Reagents for WBC 5 Part which helps in keeping the WBC Population in its Approximate original state which can generate better Scattering signals when these cells pass through Laser Beam to ensure precise enumeration of each cell population. Moreover, it is chemical dye free technology that makes system more eco-friendly in use.
Retic Tubes supplied separately are prefilled tubes containing New Methylene Blue (NMB) dye. This dye will stain the Reticulocyte present in Sample and when this stained sample passes through Laser Bim, it creates different scatter signals for Retic which are plotted on 2D scatter grams for identification and counting.
Whole Blood and capillary Blood can be used for testing on Bonavera Count 5R. For capillary Blood sample, it can be run using pre-diluted mode available in Bonavera Count 5R.
For Retic mode same EDTA sample is used. The sample is to be mixed as per quantity specified with Retic Dye Tube, mixed well by gentle inversion 7 to 8 times, then incubated at 37° C for 15 mins and then run in Retic mode of the Instrument.
Abnormal count results are displayed on the screen and it also provide detailed alphabetical flags for such results which makes pre-diagnosis simpler and easier by the operator.
Yes Bonavera Count 5R has built-in QC program with 4 QC Module options like, L-J, X-R, X-B as well as X.
Yes Bonavera Count 5R can be connected to LIS/HIS using RS 232 connector.
For routine maintenance it has software driven facility, in which just by double clicking the function in maintenance window, instrument will automatically perform the maintenance. It has ZAP Flush function as well which will help in removing stubbornly blocked aperture due to clogs in sample.
